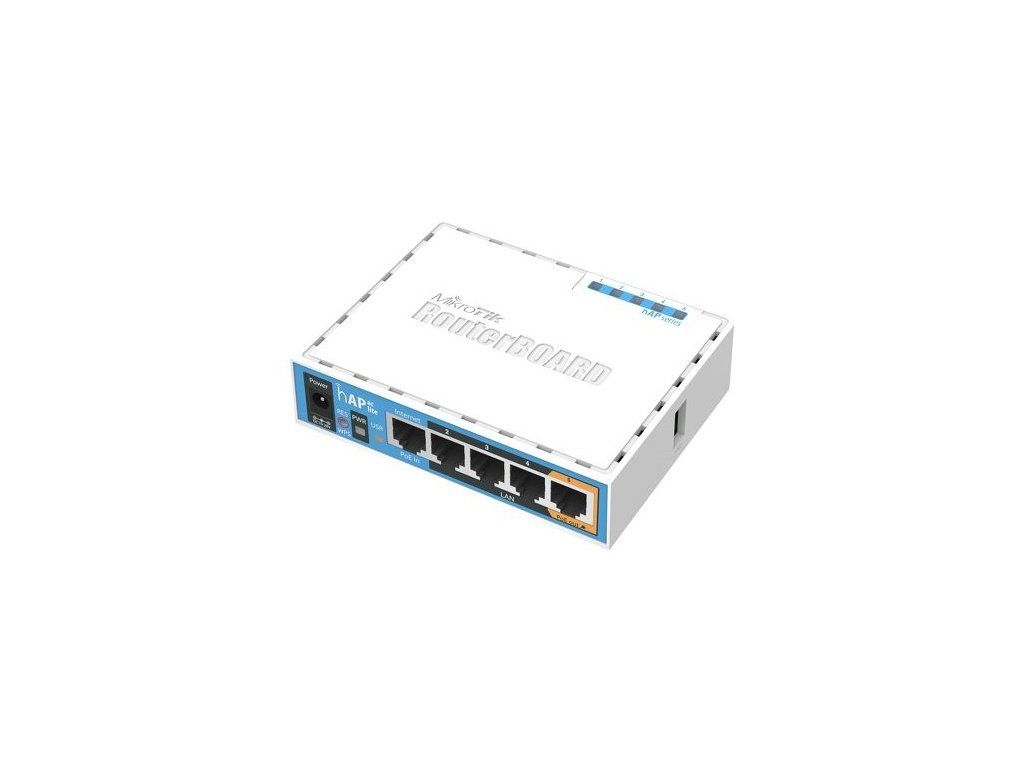

Mikrotik RB952Ui-5ac2nD, 650MHz, hAP, 5xLAN

Podrobný popis

hAP ac lite

PRESENTATION VIDEO



OVERVIEW

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
We have two versions available - RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.

TECHNICAL SPECS

Product code
*RB952Ui-5ac2nD
CPU nominal frequency
*650 MHz
CPU core count
*1
Size of RAM
*64 MB
10/100 Ethernet ports
*5
Wireless chip model
*QCA-9887-0-68BMQFN-TR-02-0
Wireless standards
*802.11a/n/ac
Secondary wireless chip model
*QCA9531
Number of USB ports
*1
Power Jack
*1
PoE in
*Yes
PoE out
*Yes
Supported input voltage
*10 V - 30 V
Dimensions
*113 x 89 x 28mm
Operating System
*RouterOS
Operating temperature range
*-30 + 70 C °
License level
*4
Antenna gain DBI
*2
CPU
*QCA9531
Max Power consumption
*8W
USB slot type
*USB type A
Number of chains
*1
Storage type
*FLASH
Storage size
*16 MB
